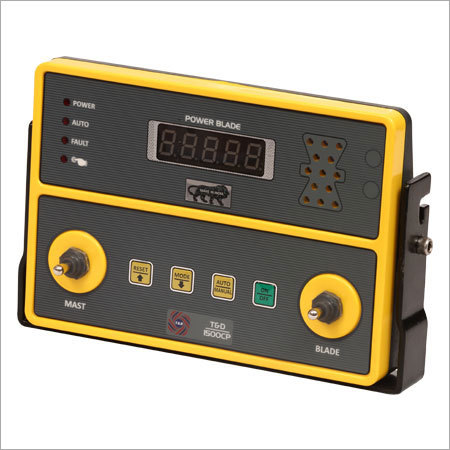

TOPSOIL Power Blade

TOPSOIL Power Blade
TOPSOIL Power Blade
Send Inquiry
Product Code : 07
Product Description

TOPSOIL Power Blade is engineered by us is best suitable for Laser Receiver 1500R. This is well assembled with multiple error indication high bright colored LED, water proof rigid enclosure, friendly user interface with display, remoter blade up or down control, optional Manual or Automatic Control, Roburt all weather connector wire and total working & job working time display. Easy to use and reliable, TOPSOIL Power Blade is provided to clients secured & protective packaging so as to any damage during transportation.

Specifications:

  • On Grade LED: Green
  • High/Low LED: Red or Yellow
  • Automatic control: Yes, when in auto mode
  • Out of Beam Indication: Yes
  • Power Option: 12 VDC supply through power cable
  • Operating temperature: -20o to 60oC
  • Voltage Range: 12/24VDC
  • Electric Output: 12/24VDC(5amp. For Each Value)
  • Hydraulic O/P Settings: Directional pr Proportional Valves
  • Water Resistant: IP 65
  • Power On or Off Switch: Switch for Manual & Automatic Control Mode Selection
  • LED Display: Show On Grade, Up-Grade and Below Grade position of the equipment with regard to the Laser Beam
  • Up/Down Hydraulic switch: Manually
